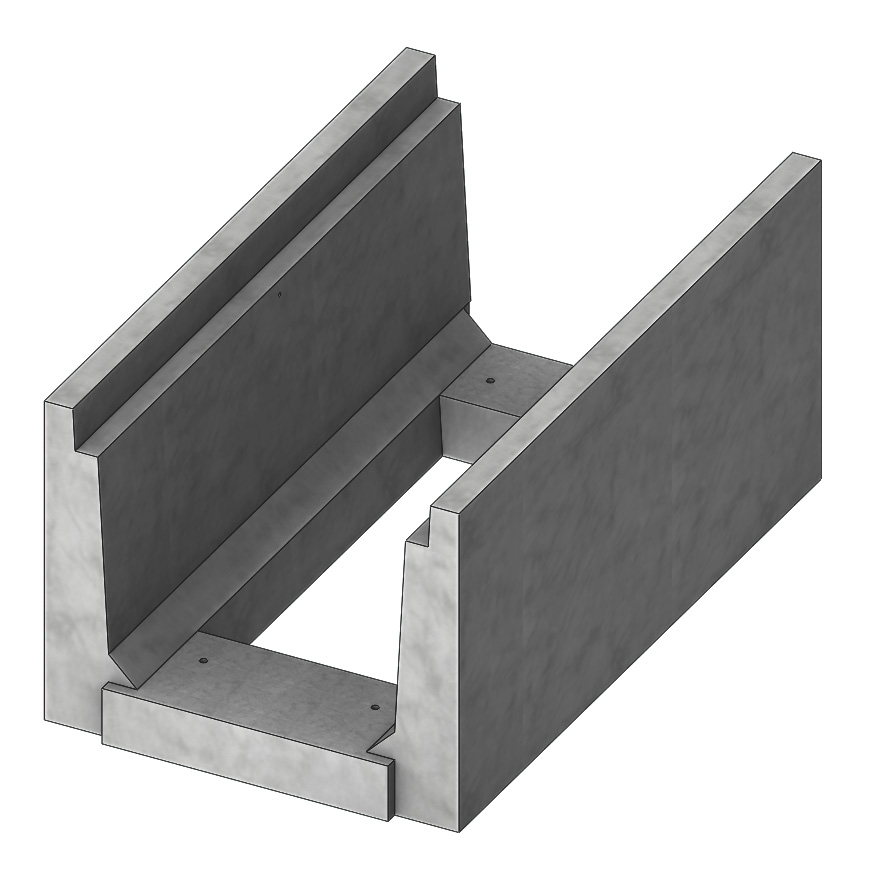

Isometric view of light traffic 16 inch deep std open bottom channel

Link to Photo AlbumLT Trench Photos

Light Traffic H-10 Rated Open Bottom 16" Depth Channel

Reinforced with steel, Concast standard concrete light traffic channel will all support a minimum of 16,000 lbs. per axle load, which is AASHTO H-10. Four 1/2 inch threaded inserts are cast into the floor of the part for safe lifting.

Open Bottom Channel  *  Used With 3 Inch Thick Covers
SG Top Rail FRP Top Rail Width X Depth
Channel ID
(Inches)
Length
(Inches)
AutoCAD_DWG_logo ACad
Dwg Block
801016LT LTF1016 48" 10 X 16 48 801016LT
802016LT LTF2016 48" 20 X 16 48 802016LT
802416LT LTF2416 48" 24 X 16 48 802416LT
803016LT LTF3016 48" 30 X 16 48 803016LT
804016LT LTF4016 48" 50 X 16 48 804016LT
881016LT LTF1016 10 X 16 96 881016LT
882016LT LTF2016 20 X 16 96 882016LT
882416LT LTF2416 24 X 16 96 882416LT
883016LT LTF3016 30 X 16 96 883016LT
884016LT LTF4016 40 X 16 96 884016LT

Cover Options:   Fibercrete      |      Galvanized Steel     |      Concrete      |      Ventilated
