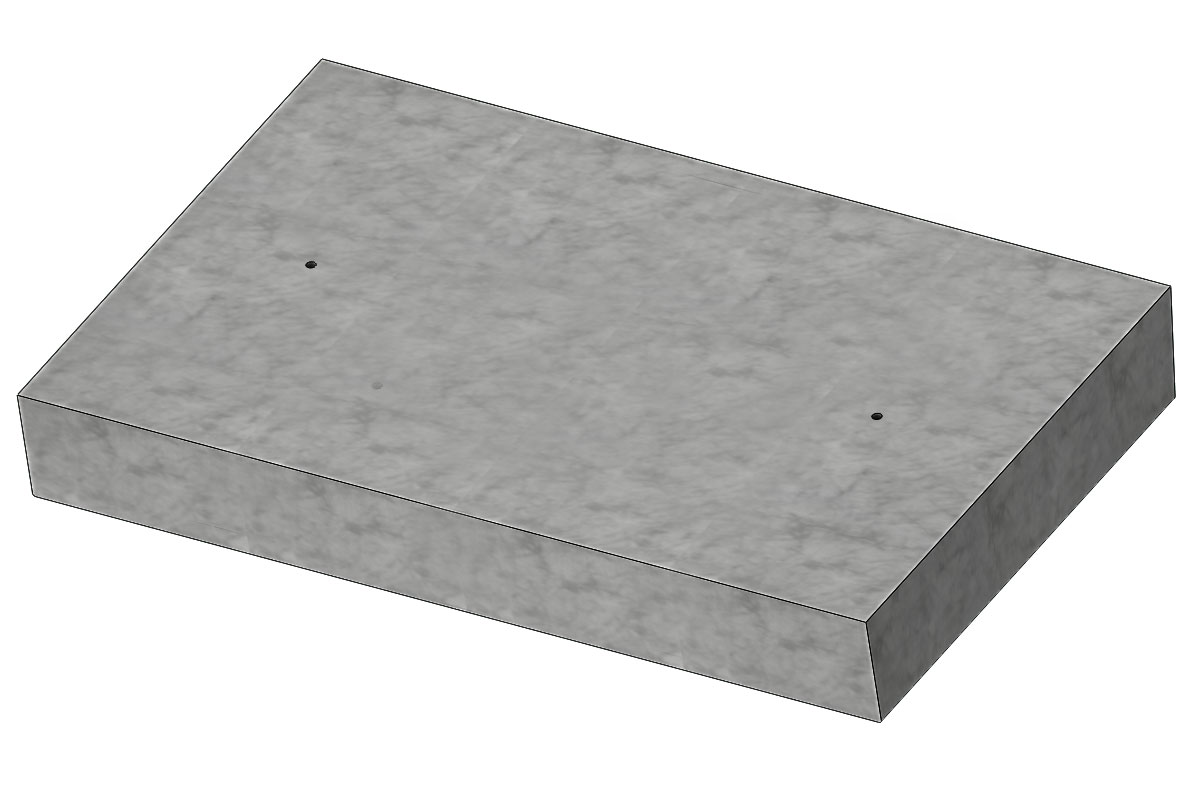

Heavy Traffic H-40 Rated Standard Concrete CoversConcast's concrete covers are steel reinforced. These solid covers are designed to support 64,000 lbs/ axle load plus a safety factor. 1/2-13 UNC threaded inserts are cast into the cover top surface for lifting.
|
H-40 Rated 6.5" Thick Covers * Used With HT Channel | |||||
---|---|---|---|---|---|
HT | Width (Inches) |
Length (Inches) |
Height (Inches) |
Weight (Pounds) |
Traffic Rating |
8011HT | 16.63 | 48 | 6.5 | 410 | H-40 |
8021HT | 26.63 | 48 | 6.5 | 666 | H-40 |
8025HT | 30.63 | 48 | 6.5 | 768 | H-40 |
8031HT | 36.63 | 48 | 6.5 | 921 | H-40 |
8041HT | 46.63 | 48 | 6.5 | 1177 | H-40 |
8051HT | 56.63 | 48 | 6.5 | 1432 | H-40 |
