Heavy Traffic H-40 Rated Standard Galvanized Steel CoversConcast's galvanized steel covers are a lightweight alternative to their heavy-duty concrete covers. They are designed to support heavy traffic H-40 loading. Covers are generally moved with the 8000 tool. If machine-assisted lifting is preferred, the 9001-T or the 8000L lift tools are an option. |
2" Thick Covers * Used With HT0608 Channel | |||||
---|---|---|---|---|---|
HTCSG06 |
Width (Inches) |
Length (Inches) |
Height (Inches) |
Weight (Pounds) |
Traffic Rating |
HTCSG06 | 8.63 | 48 | 2 | 52 | H-40 |
HTCSG06 24" | 8.63 | 24 | 2 | 27 | H-40 |
3" Thick Covers * Used With HT3 & HT12XX Channel | |||||
---|---|---|---|---|---|
HTSG |
Width (Inches) |
Length (Inches) |
Height (Inches) |
Weight (Pounds) |
Traffic Rating |
8011HTSG | 14.75 | 48 | 3 | 102 | H-40 |
8021HTSG | 24.75 | 24 | 3 | 82 | H-40 |
8025HTSG | 28.75 | 24 | 3 | 94 | H-40 |
8031HTSG | 34.75 | 24 | 3 | 113 | H-40 |
4" Thick Covers * Used With HT4 Channel | |||||
---|---|---|---|---|---|
HT4SG |
Width (Inches) |
Length (Inches) |
Height (Inches) |
Weight (Pounds) |
Traffic Rating |
8041HT4SG |
44.75 | 24 | 4 | 158 | H-40 |
6.5" Thick Covers * Used With HT Channel | |||||
---|---|---|---|---|---|
HTSG40 | Width (Inches) |
Length (Inches) |
Height (Inches) |
Weight (Pounds) |
Traffic Rating |
8011HTSG40 | 16.63 | 24 | 6.5 | 83 | H-40 |

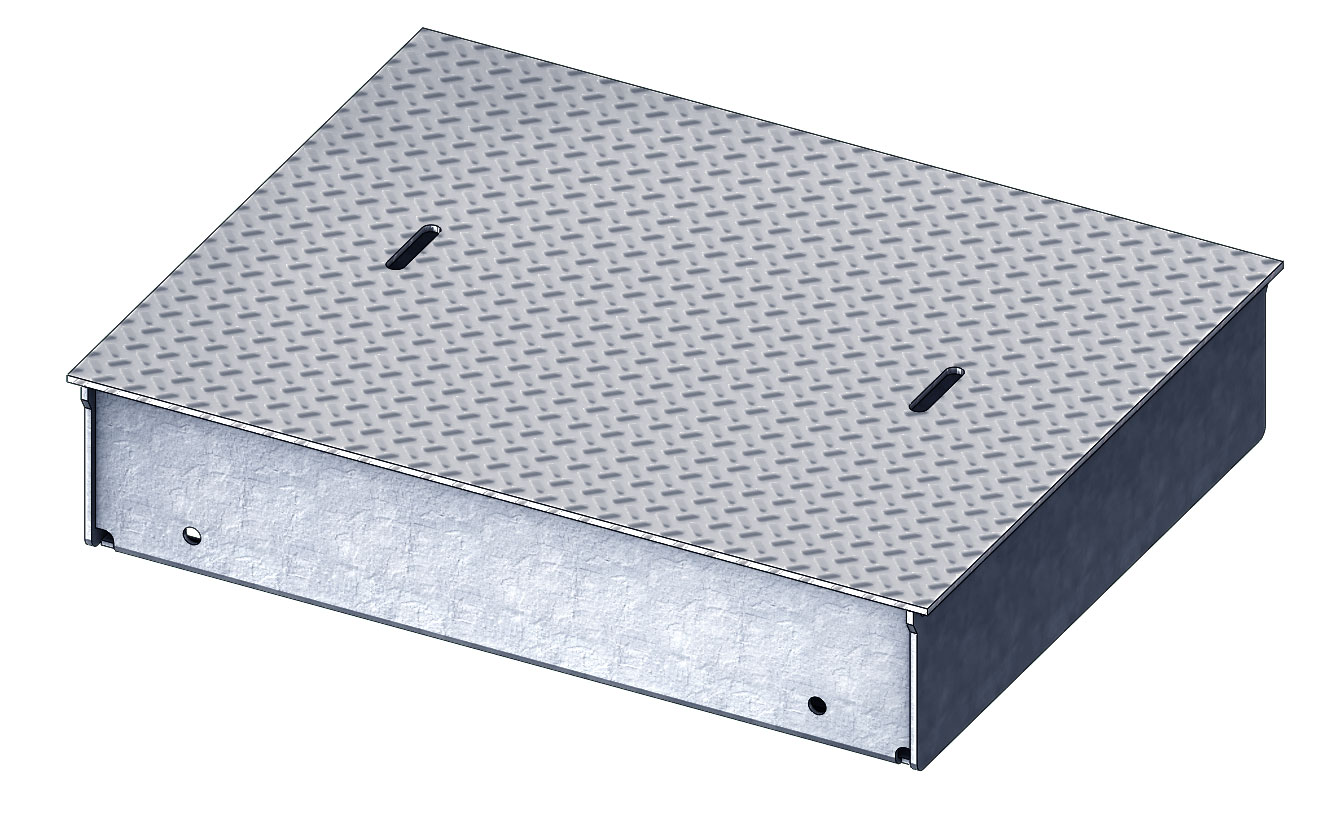

8021HTSG40 | 26.63 | 24 | 6.5 | 123 | H-40 |
8025HTSG40 | 30.63 | 24 | 6.5 | 139 | H-40 |
8031HTSG40 | 36.63 | 24 | 6.5 | 163 | H-40 |
8041HTSG40 | 46.63 | 24 | 6.5 | 204 | H-40 |
8051HTSG40 | 56.63 | 24 | 6.5 | 244 | H-40 |
