Heavy Traffic H-40 Rated Galvanized Steel Angled CoversAngled covers fit onto Concast's corner channels. For example, a 22.5R cover is the right half of a 45 degree corner section. Concast's galvanized steel covers are designed to support heavy traffic of up to 64,000 lbs/ axle load. Covers are generally moved with the 8000 tool. If machine-assisted lifting is preferred, the 9001-T or the 8000L lift tools are an option.
|
| 2" Thick Corner Covers * Used With HT0608 Angled Channel | |||||
|---|---|---|---|---|---|
| HTCSG06 Angled Covers |
Width (Inches) |
Length (Inches) |
Angle of Corner |
Weight (Pounds) |
Traffic Rating |
| HTCSG06
22.5R HTCSG06 22.5L |
8.63 | 46.88 | 45 | 49 | H-40 |
| HTCSG06
45R HTCSG06 45L |
8.63 | 45.63 | 90 | 45 | H-40 |
| 3" Thick Corner Covers * Used With HT3 & HT12XX Angled Channel | |||||
|---|---|---|---|---|---|
| HTSG Angled Covers |
Width (Inches) |
Length (Inches) |
Angle Of Corner |
Weight (Pounds) |
Traffic Rating |
| 8011HTSG
22.5R 8011HTSG 22.5L |
14.75 | 47.13 | 45 | 97 | H-40 |
| 8011HTSG
45R 8011HTSG 45L |
14.75 | 45.88 | 90 | 83 | H-40 |
| 8021HTSG
22.5R 8021HTSG 22.5L |
24.75 | 23.13 | 45 | 67 | H-40 |
| 8021HTSG
45R 8021HTSG 45L |
24.75 | 45.88 | 90 | 121 | H-40 |
| 8025HTSG
22.5R 8025HTSG 22.5L |
28.75 | 23.13 | 45 | 74 | H-40 |
| 8031HTSG
22.5R 8031HTSG 22.5L |
34.75 | 23.13 | 45 | 91 | H-40 |
| 6.5" Thick Corner Covers * Used With HT Angled Channel | |||||
|---|---|---|---|---|---|
| HTSG40 Angled Covers |
Width (Inches) |
Length (Inches) |
Angle Of Corner |
Weight (Pounds) |
Traffic Rating |
| 8011HTSG40
22.5R 8011HTSG40 22.5L |
16.63 | 47.06 | 45 | 136 | H-40 |
| 8011HTSG40
45R 8011HTSG40 45L |
16.63 | 45.81 | 90 | 119 | H-40 |
| 8021HTSG40
22.5R 8021HTSG40 22.5L |
26.63 | 23.06 | 45 | 88 | H-40 |
| 8021HTSG40
45R 8021HTSG40 45L |
26.63 | 45.81 | 90 | 155 | H-40 |
| 8025HTSG40
22.5R 8025HTSG40 22.5L |
30.63 | 23.06 | 45 | 96 | H-40 |
| 8025HTSG40
45R 8025HTSG40 45L |
36.63 | 45.81 | 90 | 166 | H-40 |
| 8031HTSG40
22.5R 8031HTSG40 22.5L |
36.63 | 23.06 | 45 | 124 | H-40 |
| 8031HTSG40
45R 8031HTSG40 45L |
36.63 | 69.81 | 90 | 332 | H-40 |

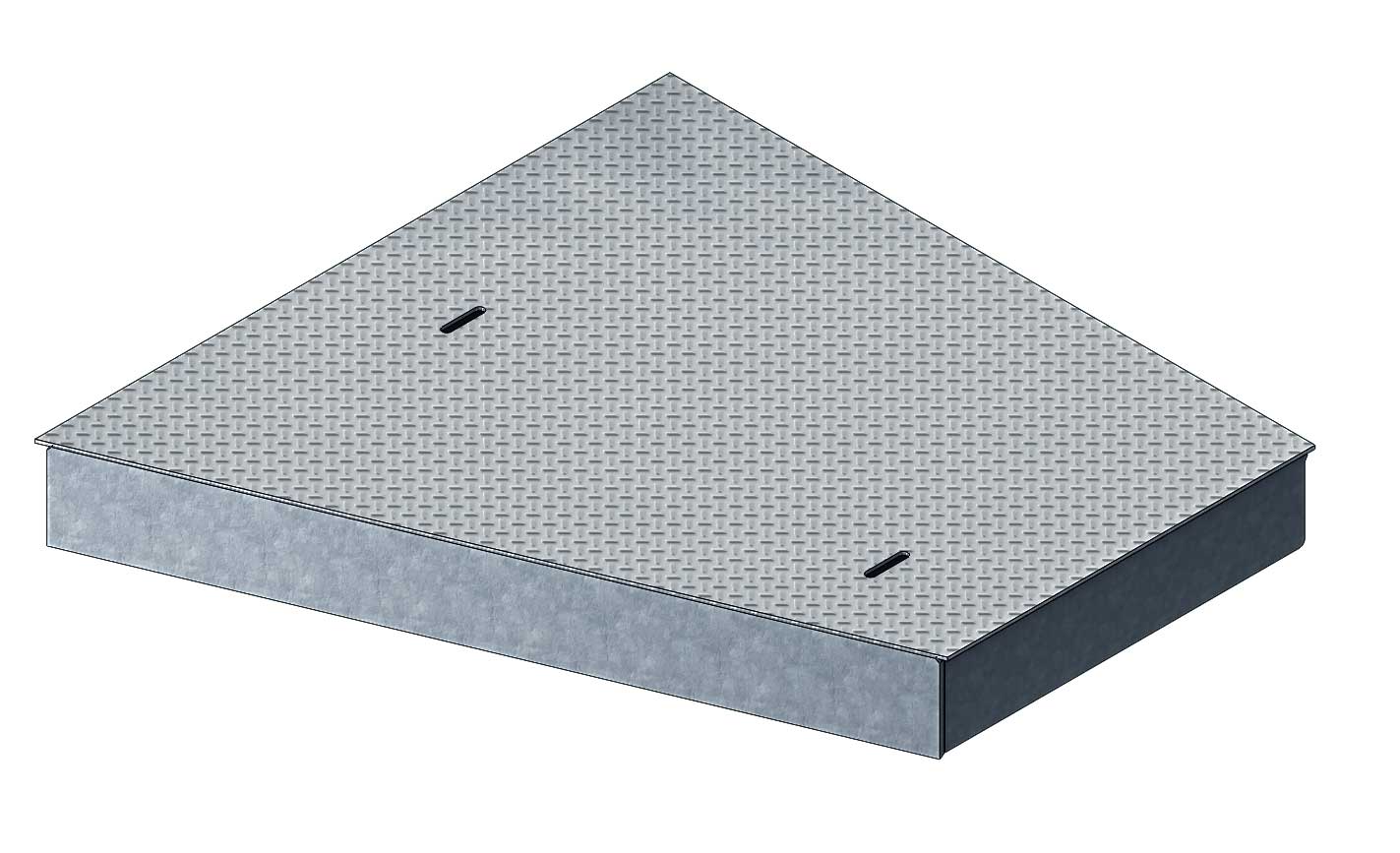

| 8041HTSG40
22.5R 8041HTSG40 22.5L |
46.63 | 47.06 | 45 | 313 | H-40 |
