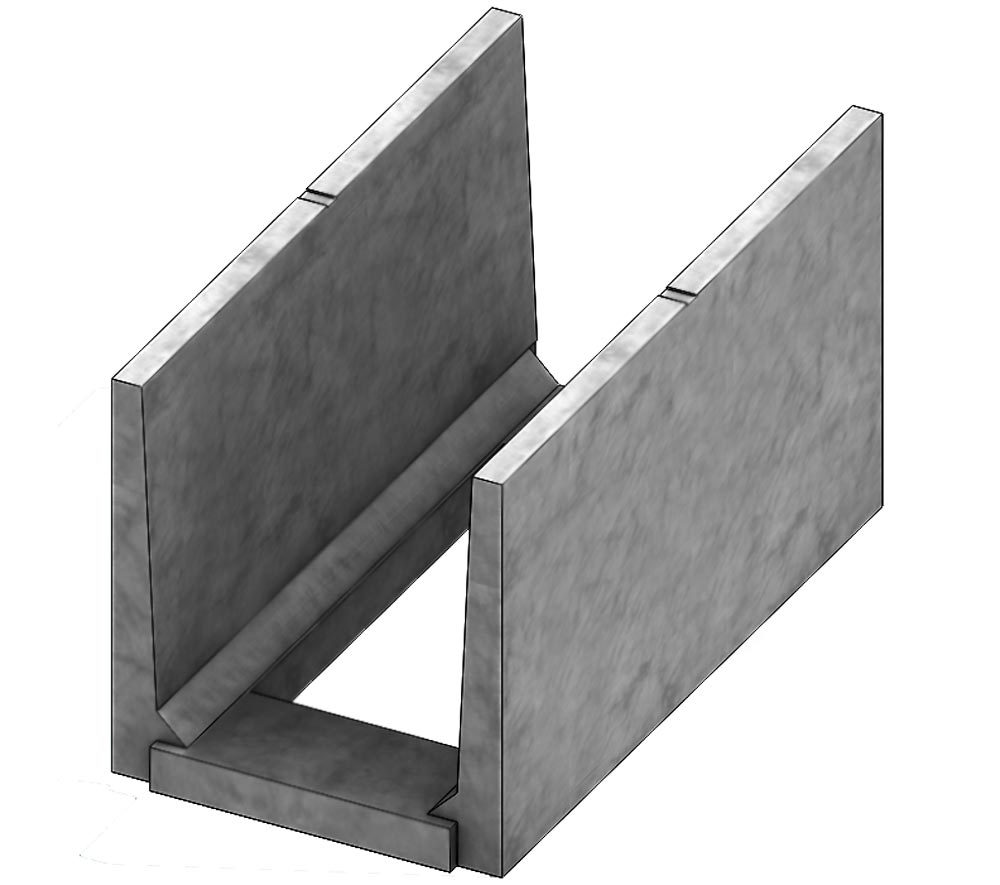

Pedestrian Rated Open Bottom 24" Deep ChannelAll concrete PT Channels are steel reinforced, and will easily support 200 pounds per square foot to achieve their pedestrian rating. They are available in 3 depths, including 12" & 16" deep. Ideal uses include housing for electrical cable trench and industrial pipe trench.
|
Ped Trench Photos
| Channel Open Bottom |
Width x Depth Channel ID (Inches) |
Length (Inches) |
ACadDwg Block |
|---|---|---|---|
| 802024PT | 20 x 24 | 48 | 802024PT |
| 802424PT | 24 x 24 | 48 | 802424PT |
| 803024PT | 30 x 24 | 48 | 803024PT |
| 804024PT | 40 x 24 | 48 | 804024PT |
| 805024PT | 50 x 24 | 48 | 805024PT |
| 882024PT | 20 x 24 | 96 | 882024PT |
| 882424PT | 24 x 24 | 96 | 882424PT |
| 883024PT | 30 x 24 | 96 | 883024PT |
| 884024PT | 40 x 24 | 96 | 884024PT |
| 885024PT | 50 x 24 | 96 | 885024PT |
Cover Options: Fibercrete | Steel Galvanized | Aluminum | Ventilated | Fiberglass | Polymer
