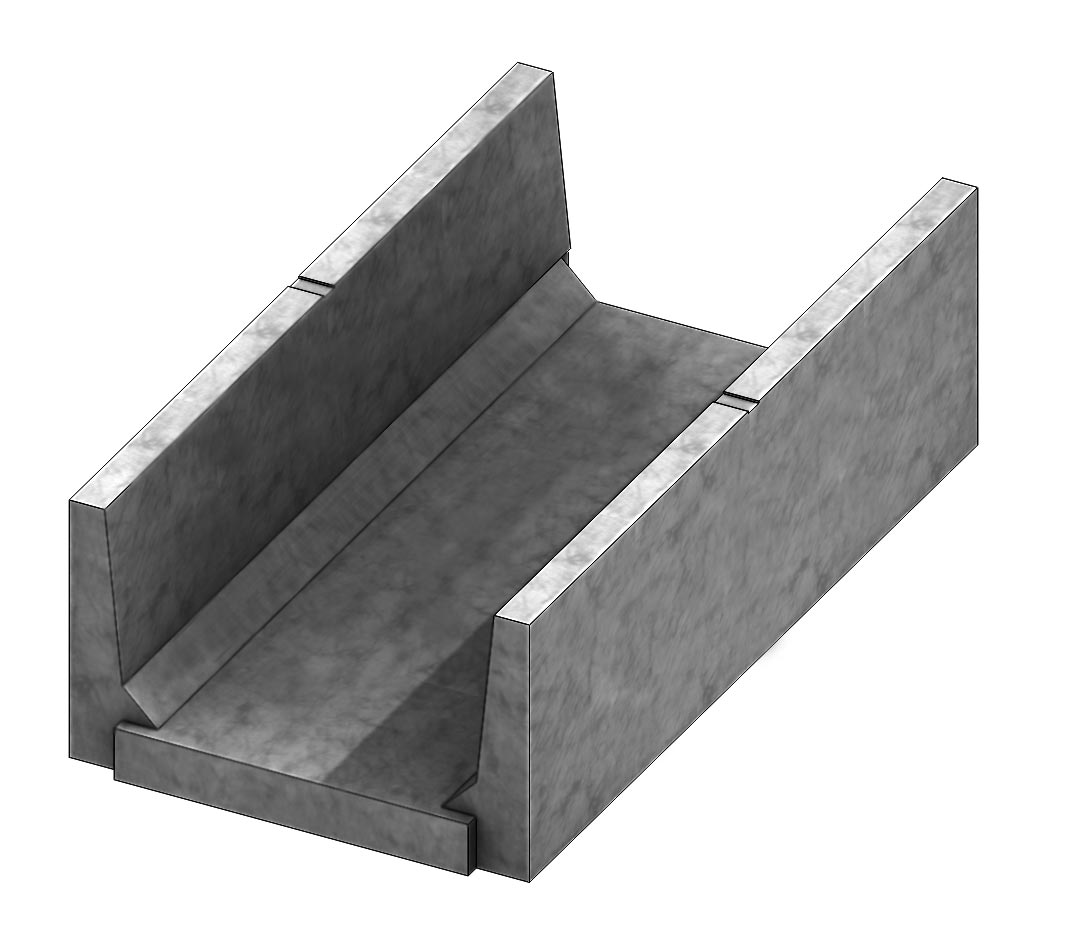

Isometric view of 12 inch deep PT pedestrian channel

Link to the pull box photo album Ped Trench Photos

Pedestrian Rated Solid Bottom 12" Deep Channel

All concrete PT Channels are steel reinforced, and will easily support 200 pounds per square foot to achieve their pedestrian rating.  They are available in 3 depths, including 16" & 24" deep. Ideal uses include housing for electrical cable trench and industrial pipe trench.

Channel
Solid Bottom
Width x Depth
Channel ID
(Inches)
Length
(Inches)
AutoCAD_DWG_logo ACad
Dwg Block
8010PTSB 10 x 12 48 8010PTSB
8020PTSB 20 x 12 48 8020PTSB
8024PTSB 24 x 12 48 8024PTSB
8030PTSB 30 x 12 48 8030PTSB
8040PTSB 40 x 12 48 8040PTSB
8050PTSB 50 x 12 48 8050PTSB
8810PTSB 10 x 12 96 8810PTSB
8820PTSB 20 x 12 96 8820PTSB
8824PTSB 24 x 12 96 8824PTSB
8830PTSB 30 x 12 96 8830PTSB
8840PTSB 40 x 12 96 8840PTSB
8850PTSB 50 x 12 96 8850PTSB

Cover Options:   Fibercrete  |   Steel Galvanized  |   Aluminum  |   Ventilated  |   Fiberglass   |   Polymer
