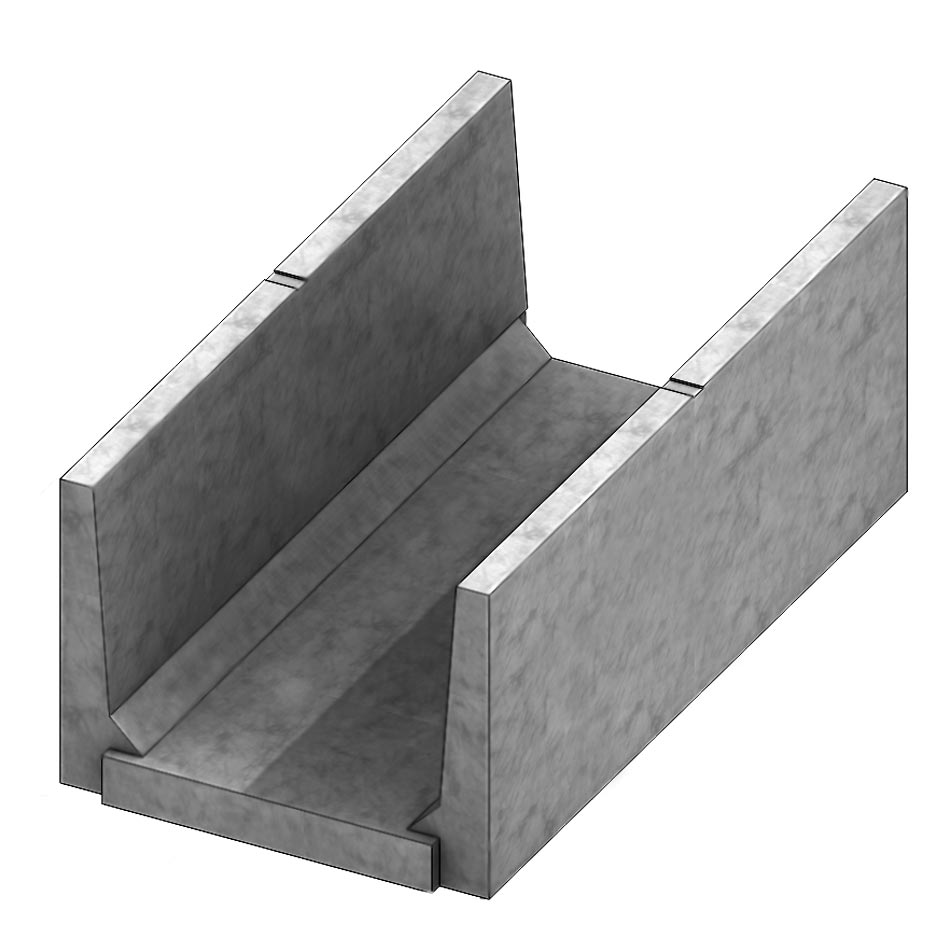

Isometric view of 16 inch deep PT pedestrian channel

Link to the pull box photo album Ped Trench Photos

Pedestrian Rated Solid Bottom 16" Deep Channel

All concrete PT Channels are steel reinforced, and will easily support 200 pounds per square foot to achieve their pedestrian rating.  They are available in 3 depths, including 12" & 24" deep. Ideal uses include housing for electrical cable trench and industrial pipe trench.

Channel
Solid Bottom
Width x Depth
Channel ID
(Inches)
Length
(Inches)
AutoCAD_DWG_logo ACad
Dwg Block
801016PTSB 10 x 16 48 801016PTSB
802016PTSB 20 x 16 48 802016PTSB
802416PTSB 24 x 16 48 802416PTSB
803016PTSB 30 x 16 48 803016PTSB
804016PTSB 40 x 16 48 804016PTSB
805016PTSB 50 x 16 48 805016PTSB
881016PTSB 10 x 16 96 881016PTSB
882016PTSB 20 x 16 96 882016PTSB
882416PTSB 24 x 16 96 882416PTSB
883016PTSB 30 x 16 96 883016PTSB
884016PTSB 40 x 16 96 884016PTSB
885016PTSB 50 x 16 96 885016PTSB

Cover Options:   Fibercrete  |   Steel Galvanized  |   Aluminum  |   Ventilated  |   Fiberglass   |   Polymer
