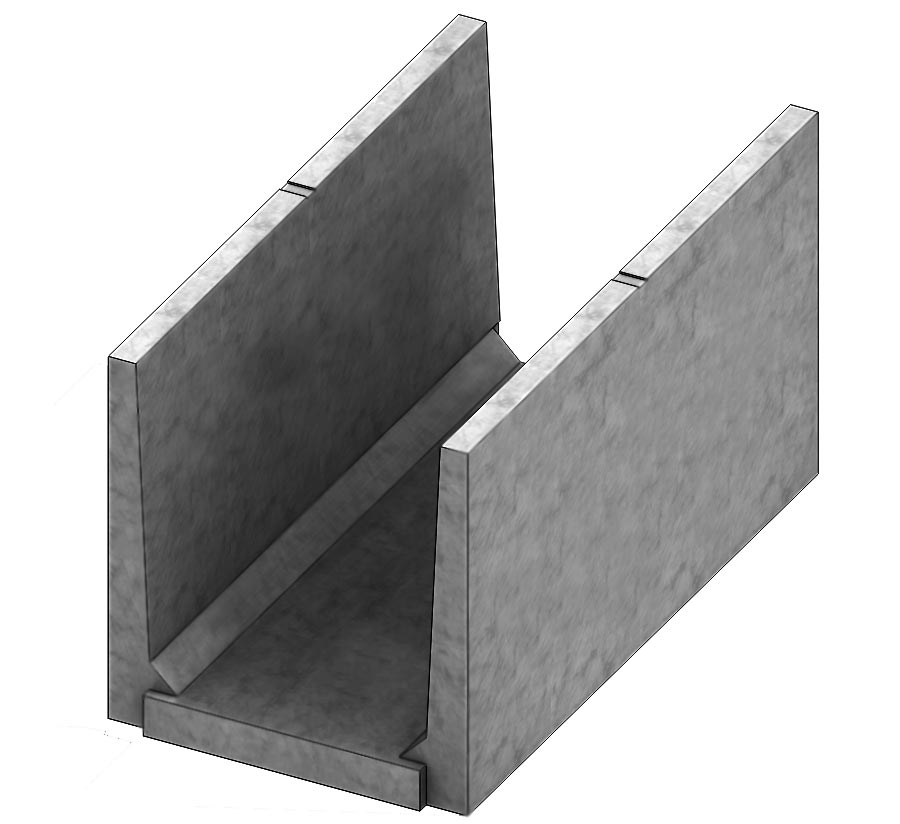

Isometric view of 24 inch deep PT pedestrian channel

Link to the pull box photo album Ped Trench Photos

Pedestrian Rated Solid Bottom 24" Deep Channel

All concrete PT Channels are steel reinforced, and will easily support 200 pounds per square foot to achieve their pedestrian rating.  They are available in 3 depths, including 12" & 16" deep. Ideal uses include housing for electrical cable trench and industrial pipe trench.

Channel
Solid Bottom
Width x Depth
Channel ID
(Inches)
Length
(Inches)
AutoCAD_DWG_logo ACad
Dwg Block
801024PTSB 10 x 24 48 801024PTSB
802024PTSB 20 x 24 48 802024PTSB
802424PTSB 24 x 24 48 802424PTSB
803024PTSB 30 x 24 48 803024PTSB
804024PTSB 40 x 24 48 804024PTSB
805024PTSB 50 x 24 48 805024PTSB
881024PTSB 10 x 24 96 881024PTSB
882024PTSB 20 x 24 96 882024PTSB
882424PTSB 24 x 24 96 882424PTSB
883024PTSB 30 x 24 96 883024PTSB
884024PTSB 40 x 24 96 884024PTSB
885024PTSB 50 x 24 96 885024PTSB

Cover Options:   Fibercrete  |   Steel Galvanized  |   Aluminum  |   Ventilated  |   Fiberglass   |   Polymer
