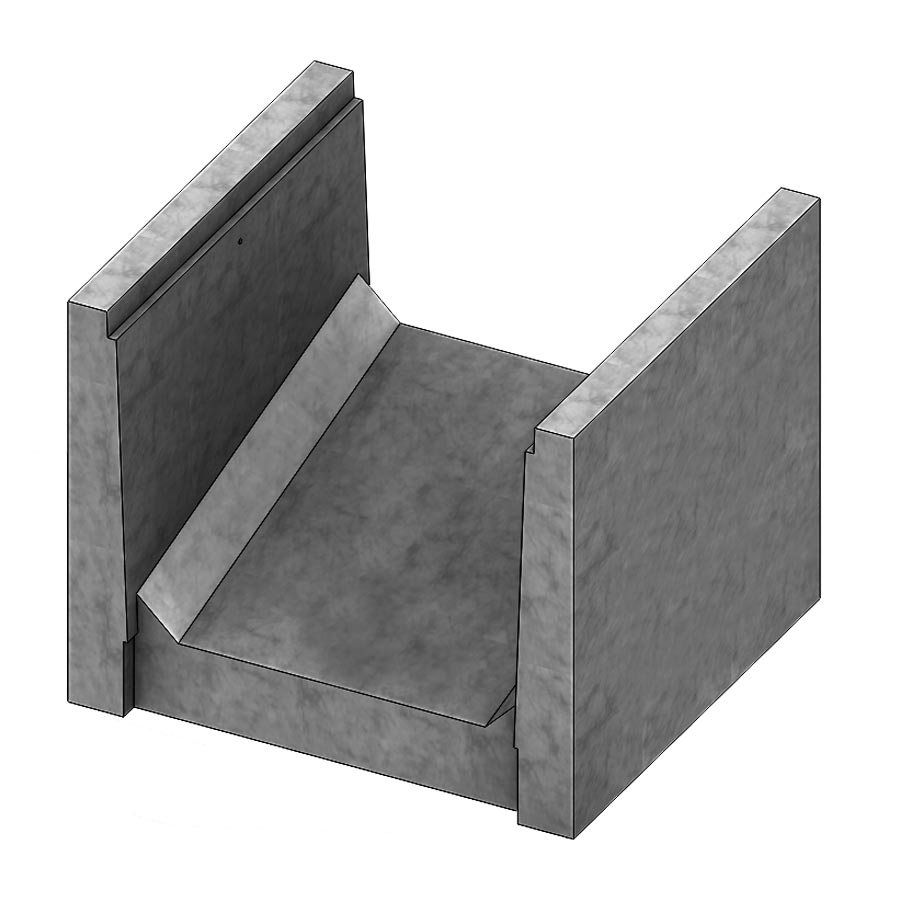

PTRT1 Transition Channel (PT. to HT Channel)

These special channels are designed to facilitate a smooth transition between Concast's standard heavy traffic channel (with 6.5" thick covers) to their pedestrian rated concrete PT channel. Please note that the channels listed below are all pedestrian rated.

12" Transition Width
Channel ID
(Inches)
Depth
Ped. & HT
Channel ID
(Inches)
AutoCAD_DWG_logo ACad
Dwg Block
8010PTRT1 10 12 8010PTRT1
8020PTRT1 20 12 8020PTRT1
8024PTRT1 24 12 8024PTRT1
8030PTRT1 30 12 8030PTRT1
8040PTRT1 40 12 8040PTRT1
8050PTRT1 50 12 8050PTRT1


16" Transition Width
Channel ID
(Inches)
Depth
Ped. & HT
Channel ID
(Inches)
AutoCAD_DWG_logo ACad
Dwg Block
801016PTRT1 10 16 801016PTRT1
802016PTRT1 20 16 802016PTRT1
802416PTRT1 24 16 802416PTRT1
803016PTRT1 30 16 803016PTRT1
804016PTRT1 40 16 804016PTRT1
805016PTRT1 50 16 805016PTRT1

24" Transition Width
Channel ID
(Inches)
Depth
Ped. & HT
Channel ID
(Inches)
AutoCAD_DWG_logo ACad
Dwg Block
801024PTRT1 10 24 801024PTRT1
802024PTRT1 20 24 802024PTRT1
802424PTRT1 24 24 802424PTRT1
803024PTRT1 30 24 803024PTRT1
804024PTRT1 40 24 804024PTRT1
805024PTRT1 50 24 805024PTRT1

Cover Options:   Fibercrete  |   Steel Galvanized  |   Aluminum  |   Ventilated  |   Fiberglass   |   Polymer
