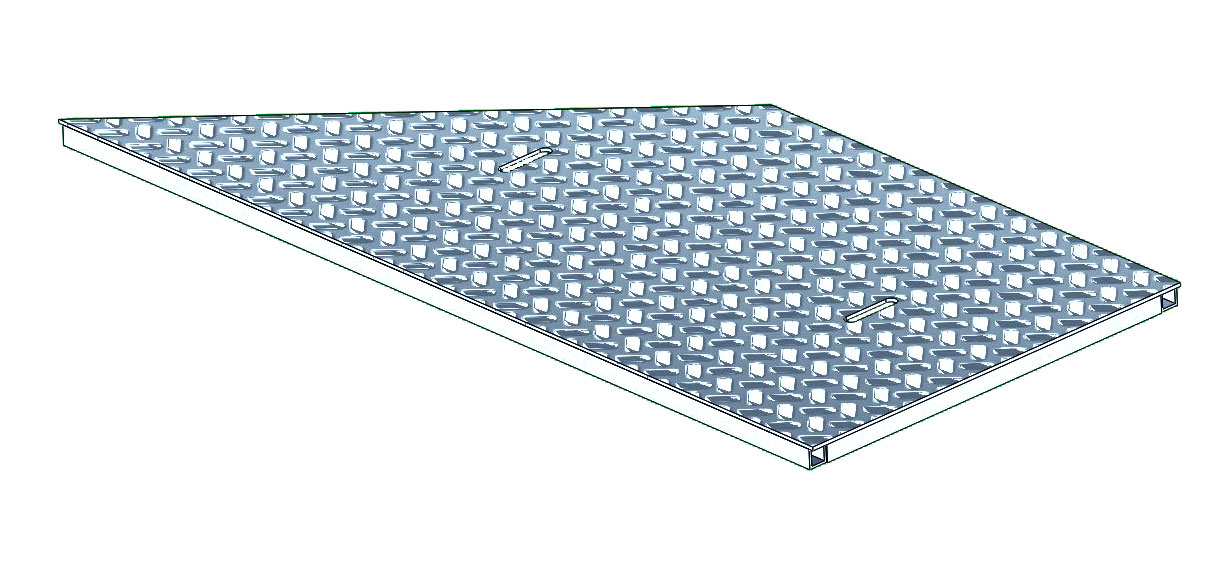

Pedestrian Rated Aluminum Corner Covers - "AT" style
"AT"
style covers have 1-1/4" of material that will be visible above the
lip of the trench after installation. These are often used where a
mix of aluminum and fibercrete covers are needed in a run. They
are part of the standard covers that include 8011AT & 8031AT.
|
Aluminum "AT" |
Rib W. (Inches) | Width & Length |
Weight (Pounds) |
---|---|---|---|
8011AT 22.5L 8011AT 22.5R |
10 | 12 X 48 | 16 |
8011AT 45L 8011AT 45R |
10 | 12 X 48 | 15 |
8021AT 22.5L 8021AT 22.5R |
20 | 22 X 48 | 26 |
8021AT 45L 8021AT 45R |
20 | 22 X 48 | 23 |
8025AT 22.5L 8025AT 22.5R |
24 | 26 X 24 | 14 |
8025AT 45L 8025AT 45R |
24 | 26 X 48 | 25 |
8031AT 22.5L 8031AT 22.5R |
30 | 32 X 24 | 21 |
8031AT 45L 8031AT 45R |
30 | 32 X 48 | 36 |
8041AT 22.5L 8041AT 22.5R |
40 | 42 X 48 | 56 |
8041AT 45L 8041AT 45R |
40 | 42 X 72 | 72 |
8051AT 22.5L 8051AT 22.5R |
50 | 52 X 48 | 66 |
8051AT 45L 8051AT 45R |
50 | 52 X 72 | 80 |
