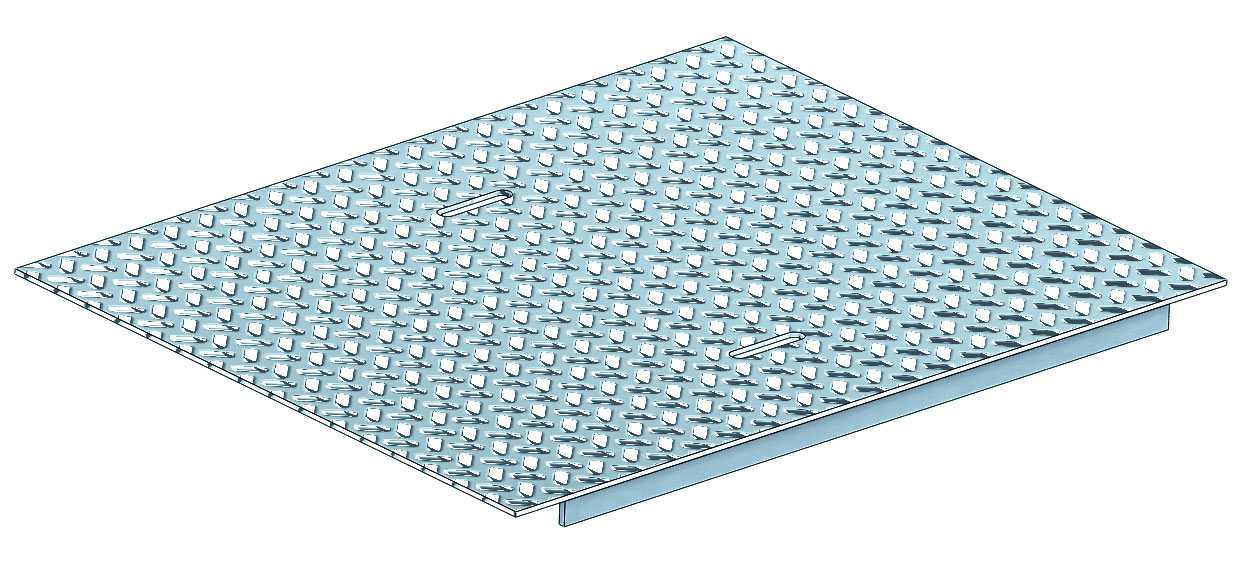

Pedestrian Rated Aluminum PT CoverThese lightweight aluminum covers have lifting slots for manual lifting, and are designed to withstand pedestrian traffic up to 300 lbs/sq. foot. The height dim does not include the rib thickness. The "A style cover has a 1/4" thickness of material above the trench sidewall and is considered flush fitting. The "AT" style cover has a height of 1.25" above the trench and the top surface will align with pedestrian fibercrete covers. These fit Concast's standard pedestrian channel.
|
Alum. "A" Cover | Rib W. (Inches) |
Width & Length |
Weight (Pounds) |
---|---|---|---|
8011A | 10 | 12 x 48 | 12 |
8021A | 20 | 22 x 48 | 22 |
8025A | 24 | 26 x 24 | 14 |
8031A | 30 | 32 x 24 | 22 |
8041A | 40 | 42 x 24 | 31 |
8051A | 50 | 52 x 16 | 28 |
Alum. "AT" Cover |
Rib W. (Inches) |
Width & Length |
Weight (Pounds) |
---|---|---|---|
8011AT | 10 | 12 x 48 | 16 |
8021AT | 20 | 22 x 48 | 27 |
8025AT | 24 | 26 x 24 | 17 |
8031AT | 30 | 32 x 24 | 26 |
8041AT | 40 | 42 x 24 | 33 |
8051AT | 50 | 52 x 16 | 30 |
