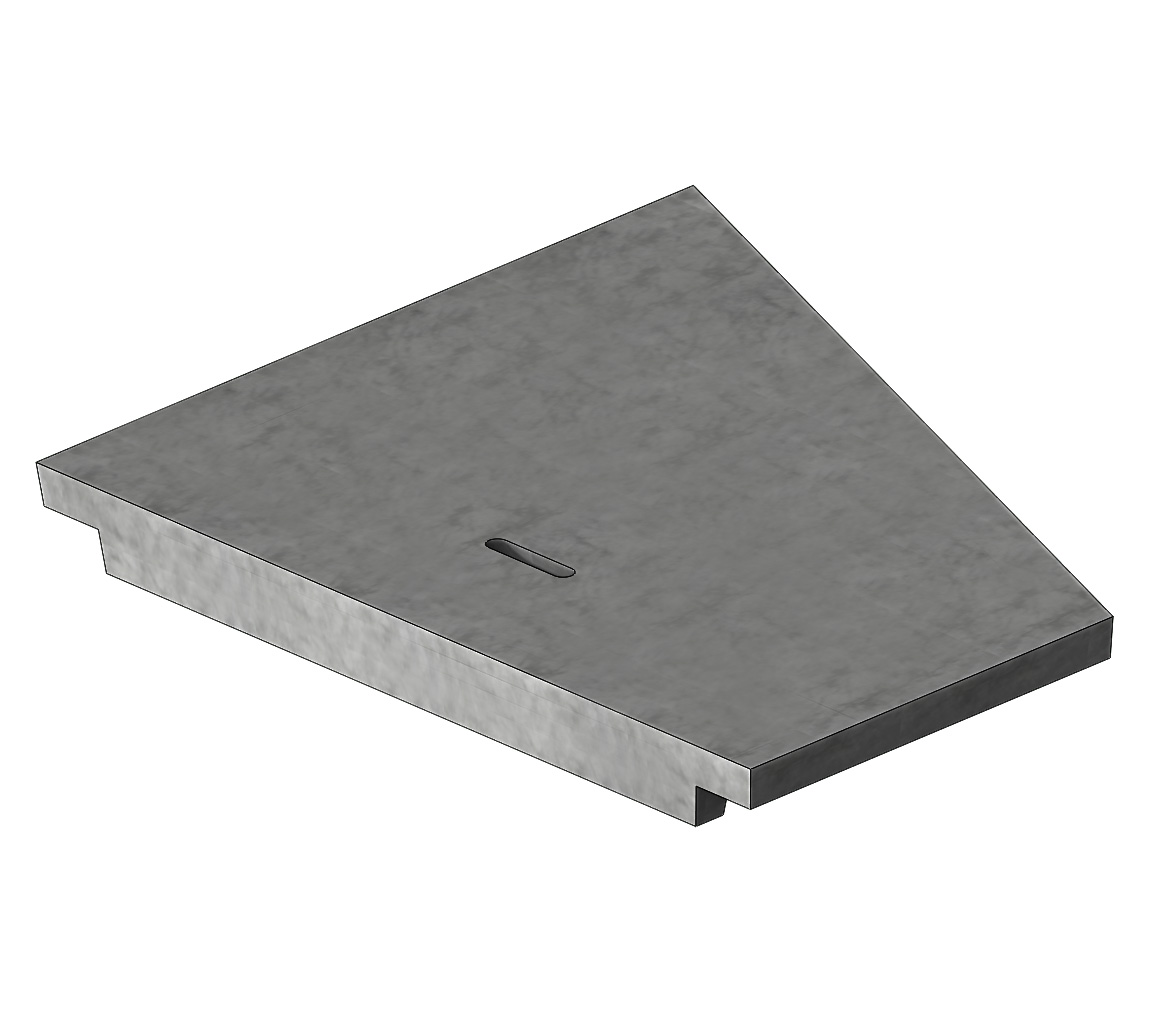

Pedestrian Rated Fibercrete® Angled CoverConcast's Fibercrete® angled covers are fiber and wire reinforced, and are sized to fit on Concast's angled channel. A 22.5R cover is the right half of a 45 degree corner section. Covers have lifting slots for easy removal. The cover height dimension of 1.25" does not include the rib thickness. These products are designed to support pedestrian traffic at 200 pounds/sq. foot.
|
Fibercrete® | Rib W. (Inches) | Width & Length |
Weight (Pounds) |
---|---|---|---|
8011 22.5L 8011 22.5R |
10 | 12.5 X 24 | 26 |
8011 45L 8011 45R |
10 | 12.5 X 24 | 22 |
8021 22.5L 8021 22.5R |
20 | 22.5 X 24 | 36 |
8021 45L 8021 45R |
20 | 22.5 X 48 | 64 |
8025 22.5L 8025 22.5R |
24 | 26.5 X 24 | 37 |
8025 45L 8025 45R |
24 | 26.5 X 48 | 71 |
8031 22.5L 8031 22.5R |
30 | 32.5 X 24 | 46 |
8031 45L 8031 45R |
30 | 32.5 X 48 | 79 |
8041 22.5L 8041 22.5R |
40 | 42.5 X 48 | 175 |
