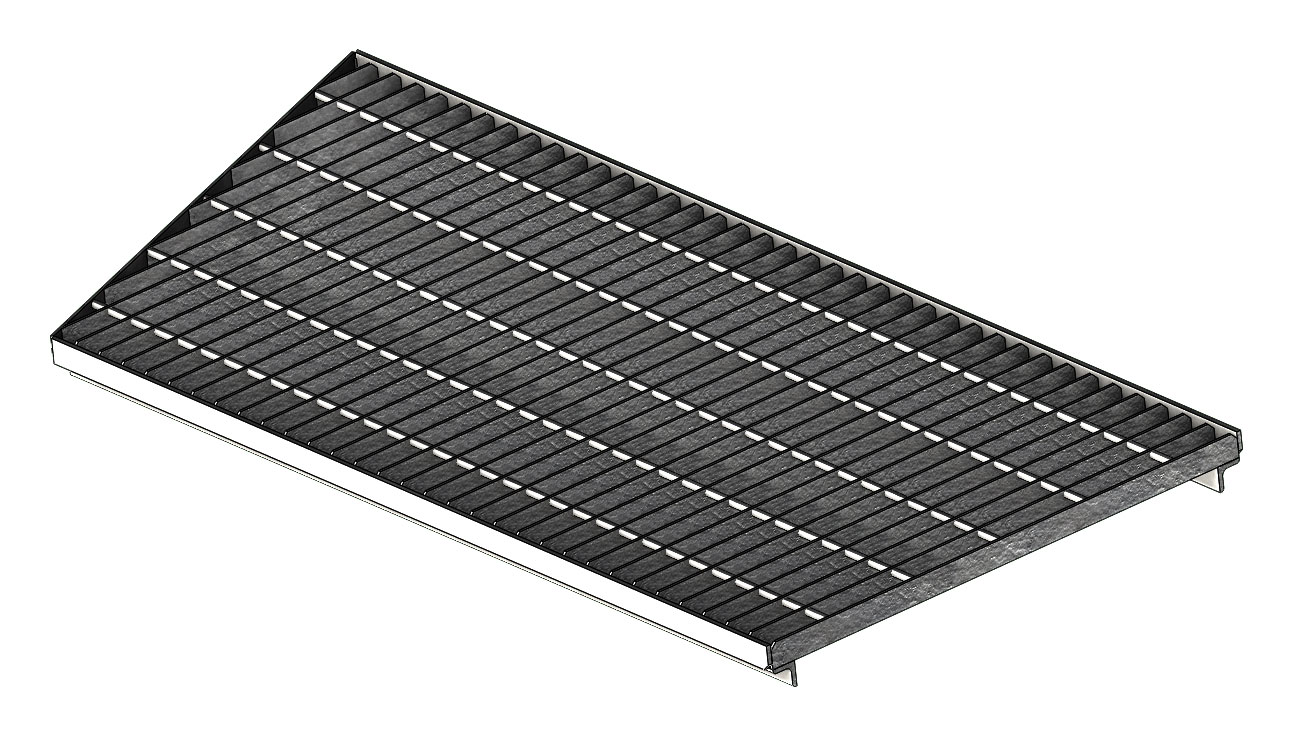

Pedestrian Rated Ventilated Angled CoverConcast's Ventilated angled covers are sized to fit on the pedestrian line of Concast angled channel, and are perfect for runs requiring air circulation. A 22.5R cover is the right half of a 45 degree corner section. The cover height dimension of 1.25" does not include the rib thickness. These products are designed to support pedestrian traffic at 200 pounds/sq. foot.
|
Ventilated | Rib W. (Inches) | Width & Length |
Weight (Pounds) |
---|---|---|---|
8011V 22.5L 8011V 22.5R |
9.75 | 12 X 48 | -- |
8011V 45L 8011V 45R |
9.75 | 12 X 48 | -- |
8021V 22.5L 8021V 22.5R |
19.75 | 22 X 48 | 45 |
8021V 45L 8021V 45R |
19.75 | 22 X 48 | 39 |
8025V 22.5L 8025V 22.5R |
23.75 | 26 X 48 | -- |
8025V 45L 8025V 45R |
23.75 | 26 X 48 | -- |
8031V 22.5L 8031V 22.5R |
29.75 | 32 X 48 | -- |
8031V 45L 8031V 45R |
29.75 | 32 X 48 | -- |
8041V 22.5L 8041V 22.5R |
39.75 | 42 X 48 | -- |
8051V 22.5L 8051V 22.5R |
49.75 | 52 X 48 | -- |
