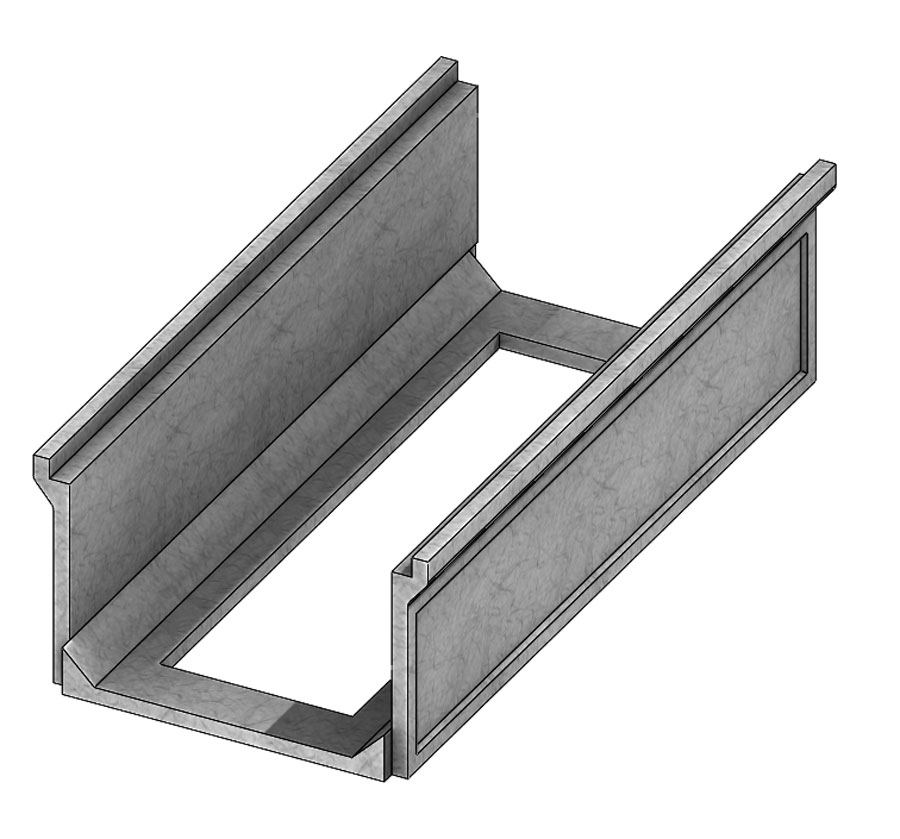

Pedestrian Rated Open Bottom 12" Deep Flush ChannelFlush channels are designed for use where surrounding rock, asphalt, or concrete needs to be flush with the top of the covers. Manufactured with Fibercrete®, our pedestrian channels are lighter than conventional concrete. Ideal uses include, but are not limited to electrical cable trench and industrial pipe trench.
|
Ped Trench Photos
| Channel Open Bottom |
Width x Depth Channel ID (Inches) |
Length (Inches) |
ACadDwg Block |
|---|---|---|---|
| 8010F | 10 x 12 | 48 | 8010F |
| 8020F | 20 x 12 | 48 | 8020F |
| 8024F | 24 x 12 | 48 | 8024F |
| 8030F | 30 x 12 | 48 | 8030F |
| 8040F | 40 x 12 | 48 | 8040F |
| 8050F | 50 x 12 | 48 | 8050F |
| 8810F | 10 12 | 96 | 8810F |
| 8820F | 20 x 12 | 96 | 8820F |
| 8824F | 24 x 12 | 96 | 8824F |
| 8830F | 30 x 12 | 96 | 8830F |
| 8840F | 40 x 12 | 96 | 8840F |
| 8850F | 50 x 12 | 96 | 8850F |
Cover Options: Fibercrete | Steel Galvanized | Aluminum | Ventilated | Fiberglass | Polymer
