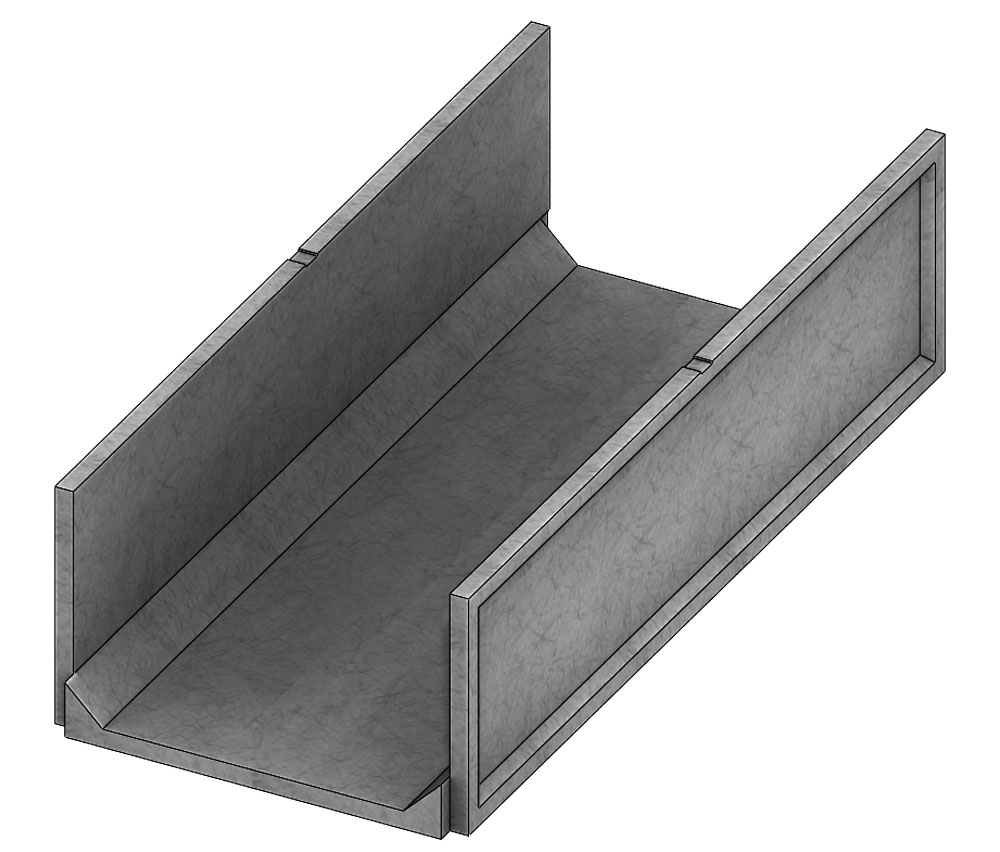

Pedestrian Rated Solid Bottom Channel

Manufactured with Fibercrete®, our pedestrian channels are lighter than conventional concrete. They boast 3 times the strength of concrete; with superior crack resistance and long-term durability. Ideal uses include, but are not limited to electrical cable trench and industrial pipe trench.

Adobe_pdf_logo Solid Bottom
Fibercrete® Channel
Width
Channel ID
(Inches)
Depth
Channel ID
(Inches)
Length
Channel
(Inches)
AutoCAD_DWG_logo AutoCad
Library Block
8010SB 10 12 48 8010SB
8020SB 20 12 48 8020SB
8024SB 24 12 48 8024SB
8030SB 30 12 48 8030SB
8040SB 40 12 48 8040SB
8050SB 50 12 48 8050SB
8810SB 10 12 96 8810SB
8820SB 20 12 96 8820SB
8824SB 24 12 96 8824SB
8830SB 30 12 96 8830SB
8840SB 40 12 96 8840SB
8850SB 50 12 96 8850SB

Cover Options:   Fibercrete  |   Steel Galvanized  |   Aluminum  |   Ventilated  |   Fiberglass
