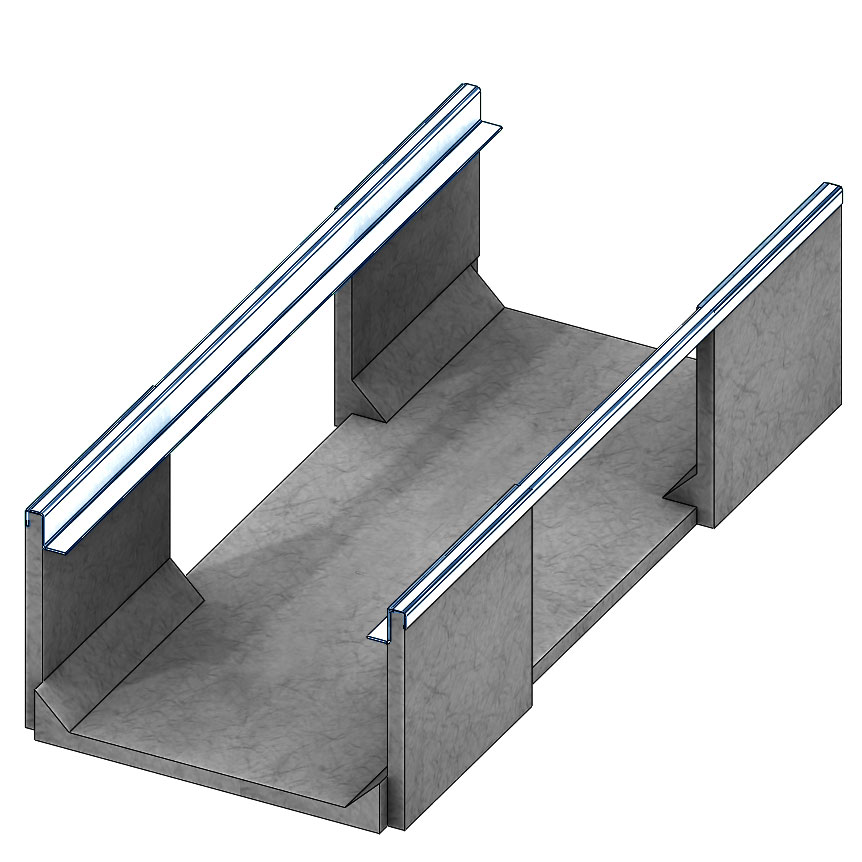

Isometric view of pedestrian 12 inch deep universal channel

Link to the trench photo album Ped Trench Photos

Pedestrian Rated 12" Deep Universal Channel

Manufactured with Fibercrete®, universal channels are generally used wherever an ell, tee, or cross is needed in a trench run. They are shipped with removable aluminum cover supports mounted to the top ledges.

Channel
Open Bottom
Width x Depth
Channel ID
(Inches)
Length
(Inches)
AutoCAD_DWG_logo ACad
Dwg Block
8012 (10X10) 10 x 12 48 8012 (10X10)
8022 (20X20) 20 x 12 48 8022 (20X20)
8026 (24X24) 24 x 12 48 8026 (24X24)
8032 (30X30) 30 x 12 48 8032 (30X30)
8042 (40X40) 40 x 12 48 8042 (40X40)
8852 (50X50) 50 x 12 96 8852 (50X50)

Cover Options:   Fibercrete  |   Steel Galvanized  |   Aluminum  |   Ventilated  |   Fiberglass   |   Polymer
