38" by 44" OD Concrete Pull Box

Concast's line of customizable concrete pull boxes are designed to interface with Concast's Trench System by creating extra cable training room next to control buildings. Additionally, they can stand alone to be used for pulling cables. Pull boxes include covers and cast-in lifting hardware. Bolt-down covers are available.  4 lifting points (threaded inserts) are cast into the top edge of each box.  Standard boxes have floor drains, but they can be ordered solid bottom or completely open.

Standard Pull Boxes With Con-Duct Terminations
Adobe_pdf_logo 4 Con-Duct
Openings/Side
Adobe_pdf_logo 9 Con-Duct
Openings/Side
Adobe_pdf_logo 16 Con-Duct
Openings/Side
Adobe_pdf_logo Included Cover
42" Deep PB4-38-44-42-A PB9-38-44-42-A PB16-38-44-42-A 1 Ped. Rated Aluminum
Cover 38-44-A
PB4-38-44-42-FC PB9-38-44-42-FC PB16-38-44-42-FC 2 Pedestrian Rated
Fibercrete Covers
38-22-FC

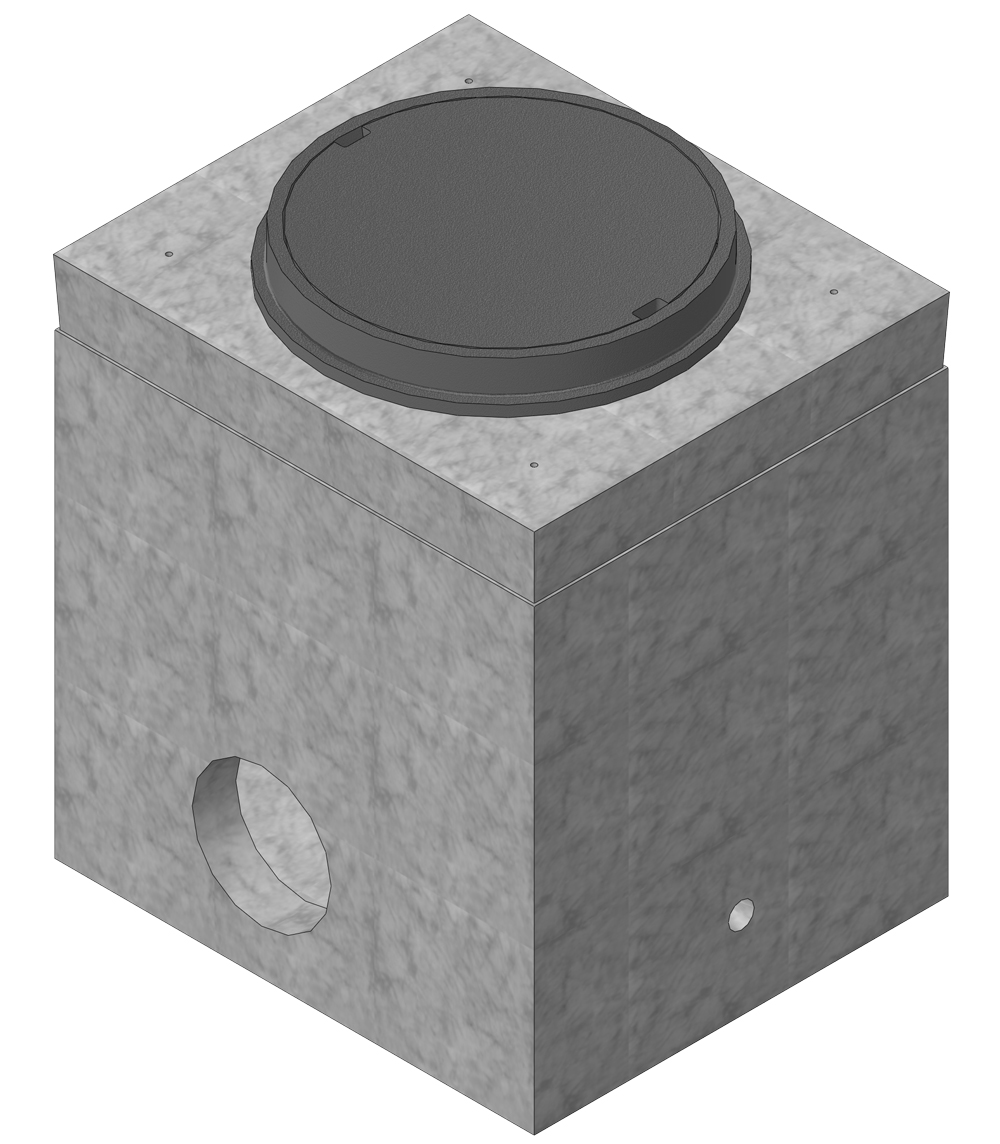

PB4-38-44-42-MH PB9-38-44-42-MH PB16-38-44-42-MH One H-20 Traffic-Rated
Concrete Manhole Base
38-44-MH
PB4-38-44-42-RSG PB9-38-44-42-RSG PB16-38-44-42-RSG 1 Galvanized Steel
H20 Traffic Rated
38-44-RSG
53" Deep PB4-38-44-53-A PB9-38-44-53-A PB16-38-44-53-A 1 Ped. Rated Aluminum
Cover 38-44-A
PB4-38-44-53-FC PB9-38-44-53-FC PB16-38-44-53-FC 2 Pedestrian Rated
Fibercrete Covers
38-22-FC
PB4-38-44-53-MH PB9-38-44-53-MH PB16-38-44-53-MH One H-20 Traffic-Rated
Concrete Manhole Base
38-44-MH
PB4-38-44-53-RSG PB9-38-44-53-RSG PB16-38-44-53-RSG 1 Galvanized Steel
H20 Traffic Rated
38-44-RSG

Standard Pull Boxes With Knockouts
Adobe_pdf_logo KO Version 1 Adobe_pdf_logo KO Version 2 Traffic Rating Adobe_pdf_logo Included Cover
42" Deep PBKO1-38-44-42-A PBKO2-38-44-42-A Pedestrian Rated 1 Aluminum Cover
38-44-A
PBKO1-38-44-42-FC PBKO2-38-44-42-FC Pedestrian Rated 2 Fibercrete Covers
38-22-FC
PBKO1-38-44-42-MH PBKO2-38-44-42-MH H-20 Traffic Rated 1 Concrete Manhole
Base 38-44-MH
PBKO1-38-44-42-RSG PBKO2-38-44-42-RSG H-20 Traffic Rated 1 Galvanized Steel
Cover 38-44-RSG
53" Deep PBKO1-38-44-53-A PBKO2-38-44-53-A Pedestrian Rated 1 Aluminum Cover
38-44-A
PBKO1-38-53-42-FC PBKO2-38-44-53-FC Pedestrian Rated 2 Fibercrete Covers
38-22-FC
PBKO1-38-44-53-MH PBKO2-38-44-53-MH H-20 Traffic Rated 1 Concrete Manhole
Base 38-44-MH
PBKO1-38-44-53-RSG PBKO2-38-44-53-RSG H-20 Traffic Rated 1 Galvanized Steel
Cover 38-44-RSG

Generic Pull Boxes For Mark-Up
Adobe_pdf_logo Pull Boxes Length
(Inches)
Width
(Inches)
Traffic
Rating
Adobe_pdf_logo Included Cover
PB-38-44-42-A 38 44 H-20 Traffic Rated 1 Ped. Rated Aluminum
Cover 38-44-A
PB-38-44-42-FC 38 44 H-20 Traffic Rated 2 Fibercrete
Pedestrian Rated
38-22-FC
PB-38-44-42-MH 38 44 H-20 Traffic Rated 1 Concrete Manhole
Base 38-44-MH
PB-38-44-42-RSG 38. 44 H-20 Traffic Rated 1 Galvanized Steel
H20 Traffic Rated
38-44-RSG
PB-38-44-53-A 38 44 Pedestrian Rated 1 Ped. Rated Aluminum
Cover 38-44-A
PB-38-44-53-FC 38 44 Pedestrian Rated 2 Fibercrete
Pedestrian Rated
38-22-FC
PB-38-44-53-MH 38 44 H-20 Traffic Rated 1 Concrete Manhole
Base 38-44-MH
PB-38-44-53-RSG 38 44 H-20 Traffic Rated 1 Galvanized Steel
H20 Traffic Rated
38-44-RSG
If you need a non-standard pull box, print out and mark up the appropriate drawing from the chart above with your design requirements such as height, hole locations, utility identification, and other optional accessories.   Email or fax it to us, and someone from Concast's engineering team will get back to you with their recommendations ASAP.
