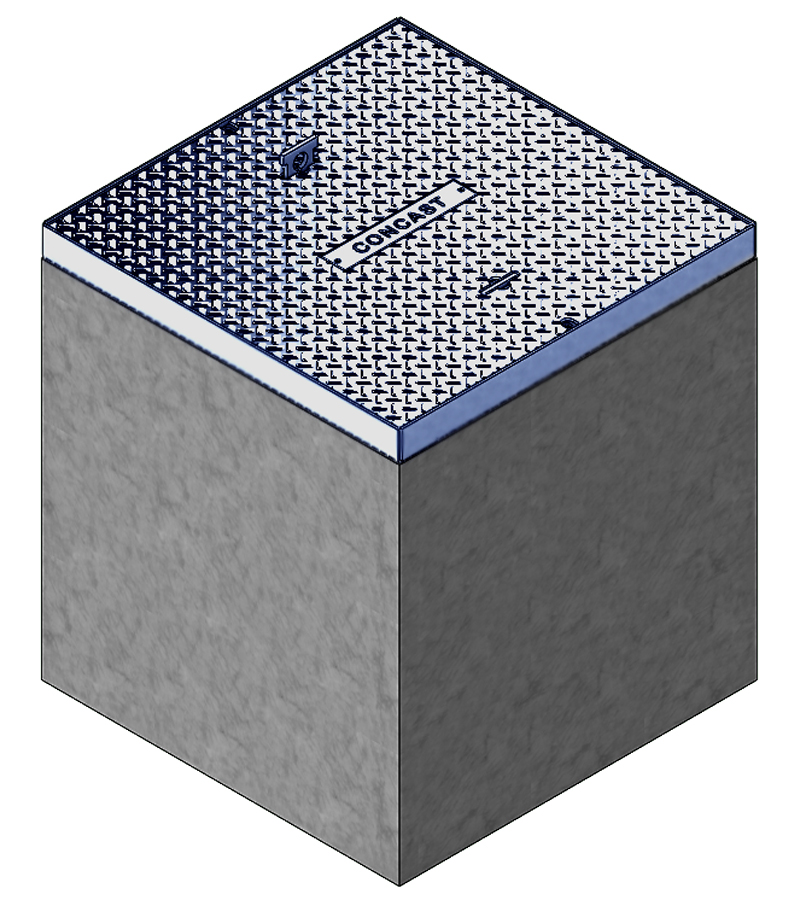

38" by 38" OD Pull Box With Bolt-Down Covers

"BD" pull boxes utilize PentaHead bolts to secure their aluminum or galvanized steel covers.   Boxes with the "ABDSL" suffix are nearly identical except they use Concast's own line of max-security SureLock fasteners.  Four lifting points (threaded inserts) are cast into the top edge of each box.

Bolt-Down Cover Pull Boxes With Con-Duct Terminations
Adobe_pdf_logo 4 Con-Duct
Openings/Side
Adobe_pdf_logo 9 Con-Duct
Openings/Side
Adobe_pdf_logo 16 Con-Duct
Openings/Side
Adobe_pdf_logo Included Cover
PB4-38-38-42-ABD PB9-38-38-42-ABD PB16-38-38-42-ABD 1 Ped. Rated Aluminum
Bolt-Down Cover
38-38-ABD
PB4-38-38-42-ABDSL PB9-38-38-42-ABDSL PB16-38-38-42-ABDSL 1 Ped. Rated Aluminum
Bolt-Down Cover
38-38-ABD
PB4-38-38-42-RSGBD PB9-38-38-42-RSGBD PB16-38-38-42-RSGBD 1 H-20 Traffic-Rated
Bolt-Down Galv. Steel
38-38-RSGBD
PB4-38-38-42-RSGBDSL PB9-38-38-42-RSGBDSL PB16-38-38-42-RSGBDSL 1 H-20 Traffic-Rated
Bolt-Down Galv. Steel
38-38-RSGBD

Bolt-Down Cover Pull Boxes With Knockouts
Adobe_pdf_logo KO Version 1 Adobe_pdf_logo KO Version 2 Traffic Rating Adobe_pdf_logo Included Cover
PBKO1-38-38-42-ABD PBKO2-38-38-42-ABD Pedestrian Rated 1 Al. Bolt-Down Cover
38-38-ABD
PBKO1-38-38-42-ABDSL PBKO2-38-38-42-ABDSL Pedestrian Rated 1 Al. Bolt-Down Cover
38-38-ABD
PBKO1-38-38-42-RSGBD PBKO2-38-38-42-RSGBD H-20 Traffic Rated 1 Galvanized Steel
Bolt-Down Cover
38-38-RSGBD
PBKO1-38-38-42-RSGBDSL PBKO2-38-38-42-RSGBDSL H-20 Traffic Rated 1 Galvanized Steel
Bolt-Down Cover
38-38-RSGBD

Generic Bolt-Down Cover Pull Boxes For Mark-Up
Adobe_pdf_logo Pull Boxes Length
(Inches)
Width
(Inches)
Height
(Inches)
Traffic
Rating
Adobe_pdf_logo Included Cover
PB-38-38-42-ABD 38 38 42 Pedestrian Rated 1 Al. Bolt-Down Cover
38-38-ABD
PB-38-38-42-ABDSL 38 38 42 Pedestrian Rated 1 Al. Bolt-Down Cover
38-38-ABD
PB-38-38-42-RSGBD 38. 38 42 H-20 Traffic Rated 1 Bolt-Down Galv. Steel
38-38-RSGBD
PB-38-38-42-RSGBDSL 38. 38 42 H-20 Traffic Rated 1 Bolt-Down Galv. Steel
38-38-RSGBD
If you need a non-standard pull box, print out and mark up the appropriate drawing from the chart above with your design requirements such as hole locations, utility identification, and other optional accessories.   Email or fax it, and Concast will get back to you with recommendations.
