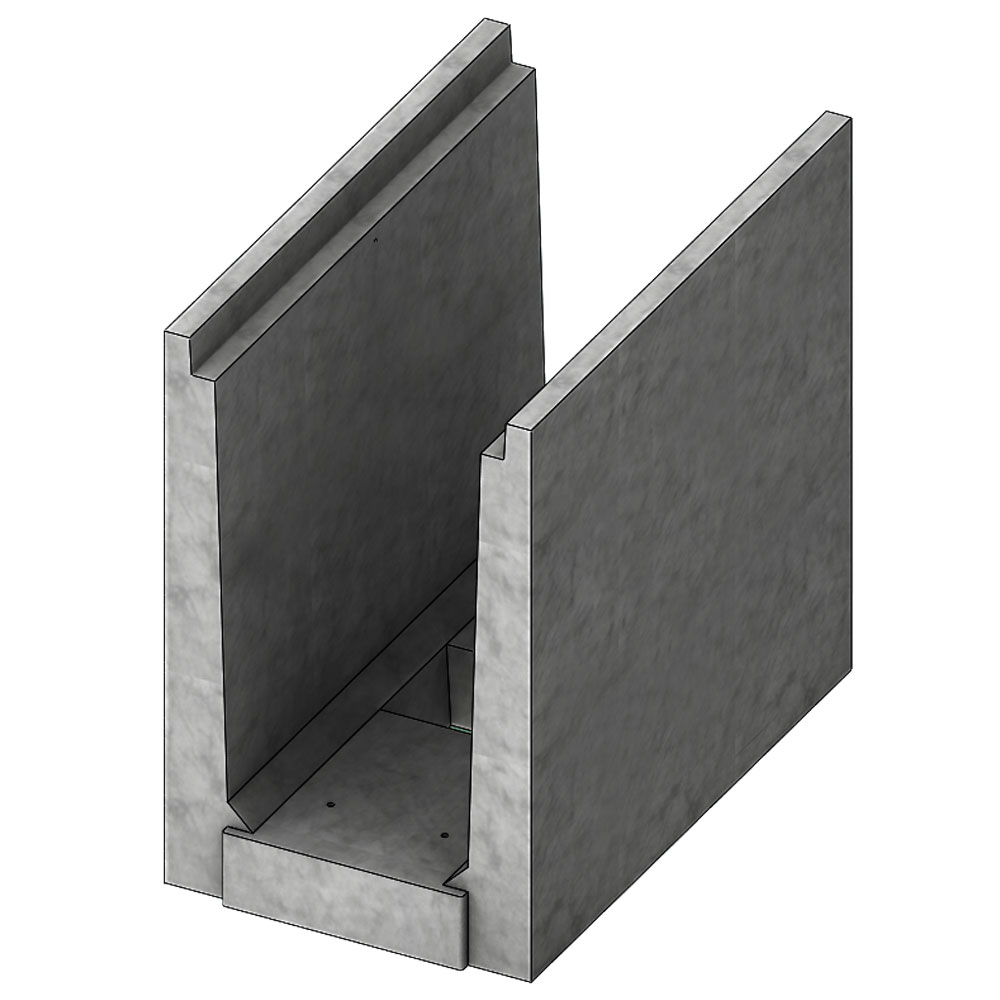

Heavy Traffic Rated Solid Bottom 36" Depth ChannelReinforced with steel, Concast standard concrete heavy traffic channel will support a minimum of 32,000 lbs. per axle load, which is AASHTO H-20. All channels are 36" deep with no openings in the channel floor. Standard lengths are either 48" or 96". Inside width of the trench is referenced in the charts below. |
| STEEL TOP RAIL | FRP TOP RAIL | WIDTH & LENGTH |  ACAD |
|---|---|---|---|
| 802036HT3SB |
HTF2036SB 48" |
20 X 48 | 802036HT3SB |
| 802436HT3SB |
HTF2436SB 48" |
24 X 48 | 802436HT3SB |
| 803036HT3SB |
HTF3036SB 48" |
30 X 48 | 803036HT3SB |
| 804036HT3SB |
HTF4036SB 48" |
40 X 48 | 804036HT3SB |
| 882036HT3SB |
HTF2036SB |
20 X 96 | 882036HT3SB |
| 882436HT3SB |
HTF2436SB |
24 X 96 | 882436HT3SB |
| 883036HT3SB |
HTF3036SB |
30 X 96 | 883036HT3SB |
| 884036HT3SB |
HTF4036SB |
40 X 96 | 884036HT3SB |
| STEEL TOP RAIL | FRP TOP RAIL | WIDTH & LENGTH | ACAD |
|---|---|---|---|
| 804036HT4SB |
HT4F4036SB 48" |
40 X 48 | 804036HT4SB |
| 884036HT4SB |
HT4F4036SB |
40 X 96 | 884036HT4SB |
| STEEL TOP RAIL | FRP TOP RAIL | WIDTH & LENGTH | ACAD |
|---|---|---|---|
| 802036HTSB |
HT6F2036SB 48" |
20 X 48 | 802036HTSB |
| 802436HTSB |
HT6F2436SB 48" |
24 X 48 | 802436HTSB |
| 803036HTSB |
HT6F3036SB 48" |
30 X 48 | 803036HTSB |
| 804036HTSB |
HT6F4036SB 48" |
40 X 48 | 804036HTSB |
| 805036HTSB |
HT6F5036SB 48" |
40 X 48 | 805036HTSB |
| 882036HTSB |
HT6F2036SB |
20 X 96 | 882036HTSB |
| 882436HTSB |
HT6F2436SB |
24 X 96 | 882436HTSB |
| 883036HTSB |
HT6F3036SB |
30 X 96 | 883036HTSB |
| 884036HTSB |
HT6F4036SB |
40 X 96 | 884036HTSB |
| 885036HTSB |
HT6F5036SB |
50 X 96 | 885036HTSB |
