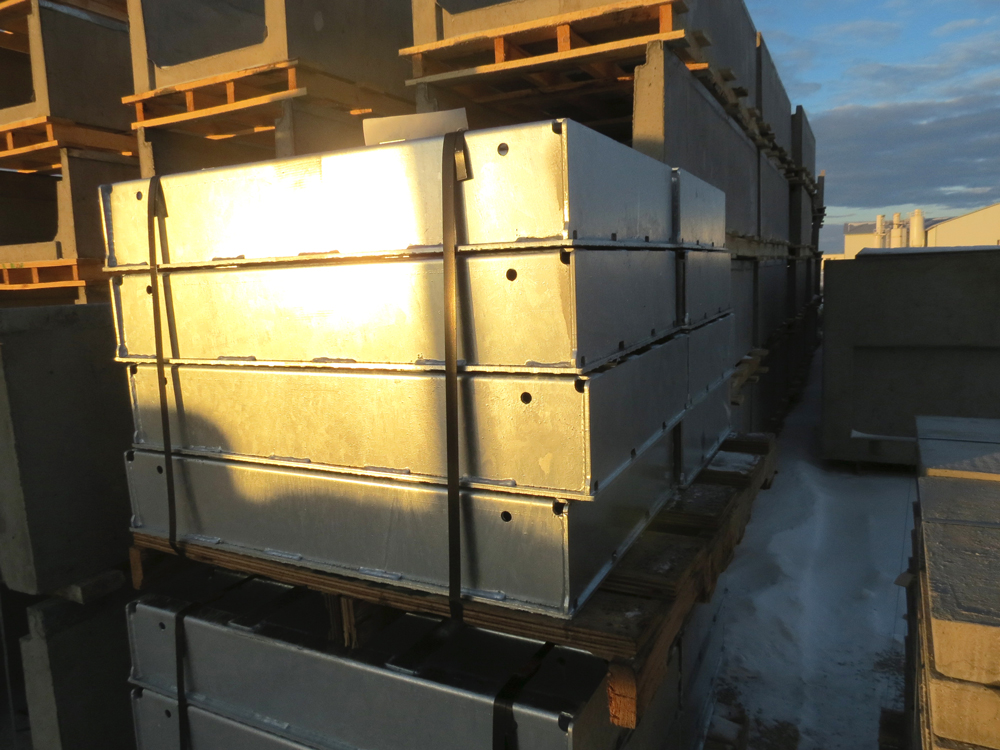

Heavy Traffic Galvanized Steel Universal Trench CoversThese galvanized steel
covers fit onto Concast's
"Tee" style universal channels. These lightweight covers are
designed to support heavy traffic of at least 32,000 lbs/ axle load - most will
actually support an H-40 rating. Covers
are generally moved with the 8000 tool;
however, if machine-assisted lifting is preferred, the
8000L tool
is an option.
|
| 2" Thick Covers * Used With HT0608 Universal Channel | |||||
|---|---|---|---|---|---|
Universal
Galv. Steel Covers |
Width (Inches) |
Length (Inches) |
Height (Inches) |
Weight (Pounds) |
Max. Traffic Rating (AASHTO) |
| HTCSG06U1 | 8.75 | 48 | 2 | -- | H-40 |
| HTCSG06U2 | 8.75 | 24 | 2 | -- | H-40 |
| 3" Thick Covers * Used With HT3 & HT12XX Universal Channel | |||||
|---|---|---|---|---|---|
|
Universal
Galv. Steel Covers |
Width (Inches) |
Length (Inches) |
Height (Inches) |
Weight (Pounds) |
Max. Traffic Rating (AASHTO) |
| 8011HTSGU1 | 14.75 | 48 | 3 | 97 | H-40 |
| 8011HTSGU2 | 14.75 | 48 | 3 | 101 | H-40 |
| 8021HTSGU1 | 24.75 | 48 | 3 | 161 | H-40 |
| 8021HTSGU2 | 24.75 | 48 | 3 | 168 | H-40 |
| 8025HTSGU1 | 28.75 | 48 | 3 | 184 | H-40 |
| 8025HTSGU2 | 28.75 | 48 | 3 | 193 | H-40 |
| 8031HTSGU1 | 34.75 | 48 | 3 | 218 | H-40 |
| 8031HTSGU2 | 34.75 | 48 | 3 | 229 | H-40 |
| 8041HTSGU1 | 44.75 | 72 | 3 | 412 | H-40 |
| 8041HTSGU2 | 44.75 | 72 | 3 | 416 | H-40 |
| 6.5" Thick Covers * Used With HT Channel | |||||
|---|---|---|---|---|---|
|
Universal Galv. Steel Covers |
Width (Inches) |
Length (Inches) |
Height (Inches) |
Weight (Pounds) |
Max. Traffic Rating (AASHTO) |
| 8011HTSG40U1 | 16.63 | 48 | 6.5 | 144 | H-40 |
| 8011HTSG40U2 | 16.63 | 48 | 6.5 | 148 | H-40 |
| 8021HTSG40U1 | 26.63 | 48 | 6.5 | 228 | H-40 |
| 8021HTSG40U2 | 26.63 | 48 | 6.5 | 236 | H-40 |
| 8025HTSG40U1 | 30.63 | 48 | 6.5 | 256 | H-40 |
| 8025HTSG40U2 | 30.63 | 48 | 6.5 | 266 | H-40 |
| 8031HTSG40U1 | 36.63 | 48 | 6.5 | 298 | H-40 |
| 8031HTSG40U2 | 36.63 | 48 | 6.5 | 311 | H-40 |
| 8041HTSG40U1 | 46.63 | 72 | 6.5 | 556 | H-40 |
| 8041HTSG40U2 | 46.63 | 72 | 6.5 | 572 | H-40 |
| 8851HTSG40U1 | 56.63 | 96 | 6.5 | 966 | H-40 |
| 8851HTSG40U2 | 56.63 | 96 | 6.5 | 986 | H-40 |
 |
