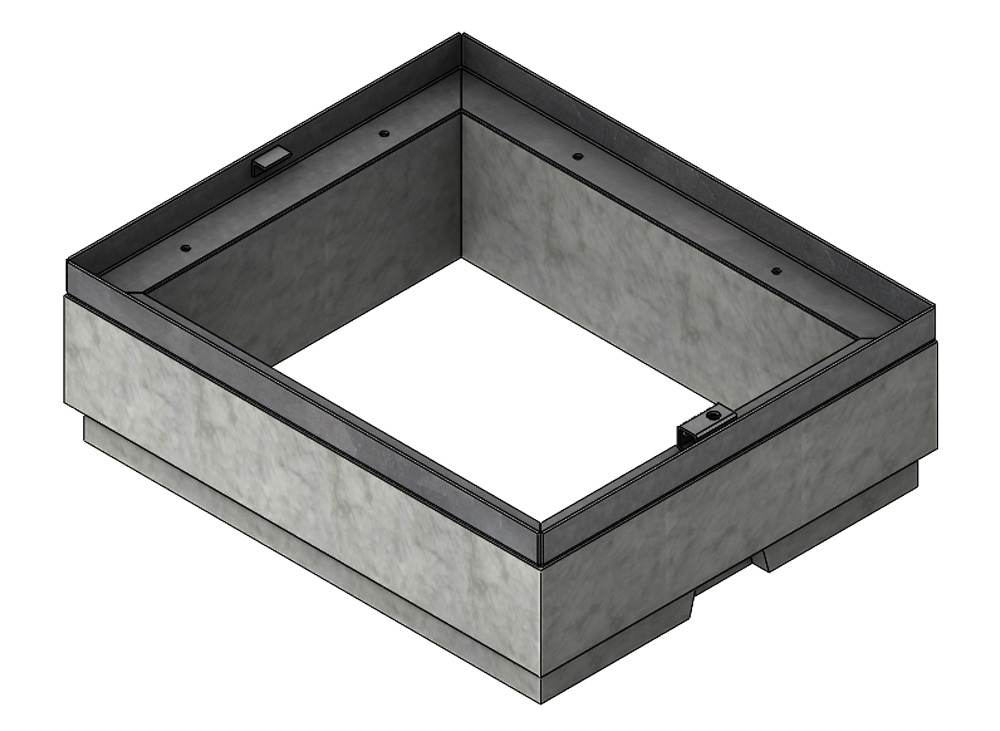

FHR Handhole Extensions
The heavy traffic extensions are designed to be stacked on Concast's
line of standard
FHR &
"SureLock" FHRSLP handholes; thereby affording more
height options. The FHR(SLP) steel cover is purchased
with the handhole, and will fit into the extension easily. These
extensions come in a variety of heights including 12",
18", 24", 30", & 36". For
example, if you need a 48" tall handhole, you
would combine the standard 36" tall FHR handhole
with it's corresponding 12" extension. |
FHRStandard Extension |
Width Outside (Inches) |
Length Outside (Inches) |
|---|---|---|
| FHREX-18-18-XX | 18 | 18 |
| FHREX-18-24-XX | 18 | 24 |
| FHREX-18-30-XX | 18 | 30 |
| FHREX-18-36-XX | 18 | 36 |
| FHREX-24-24-XX | 24 | 24 |
| FHREX-24-30-XX | 24 | 30 |
| FHREX-24-36-XX | 24 | 36 |
| FHREX-30-30-XX | 30 | 30 |
| FHREX-30-36-XX | 30 | 36 |
| FHREX-30-48-XX | 30 | 48 |
