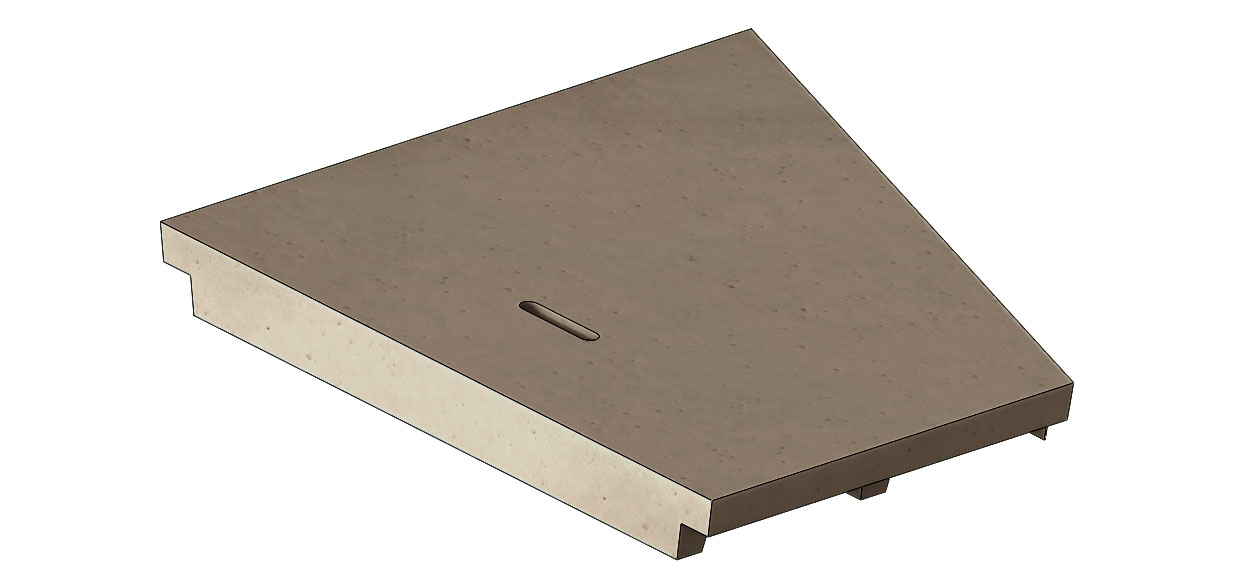

Pedestrian Rated Polymer Angled CoverConcast's polymer concrete covers are strong and lightweight. A 22.5R cover is the right half of a 45 degree corner section. They have lifting slots for easy removal. The cover height dimension of 1-1/4" does not include the rib thickness. These products are designed to withstand pedestrian traffic at 200 pounds/sq. foot. Covers have lifting slots for easy removal.
|
Polymer | Rib W. (Inches) | Width & Length |
Weight (Pounds) |
---|---|---|---|
8011P 22.5L 8011P 22.5R |
10 | 12.5 X 24 | 26 |
8011P 45L 8011P 45R |
10 | 12.5 X 24 | 21 |
8021P 22.5L 8021P 22.5R |
20 | 22.5 X 24 | 47 |
8021P 45L 8021P 45R |
20 | 22.5 X 48 | 89 |
8025P 22.5L 8025P 22.5R |
24 | 26.5 X 24 | 51 |
8025P 45L 8025P 45R |
24 | 26.5 X 48 | 96 |
8031P 22.5L 8031P 22.5R |
30 | 32.5 X 24 | 56 |
8031P 45L 8031P 45R |
30 | 32.5 X 48 | 103 |
8041P 22.5L 8041P 22.5R |
40 | 42.5 X 48 | 67 |
